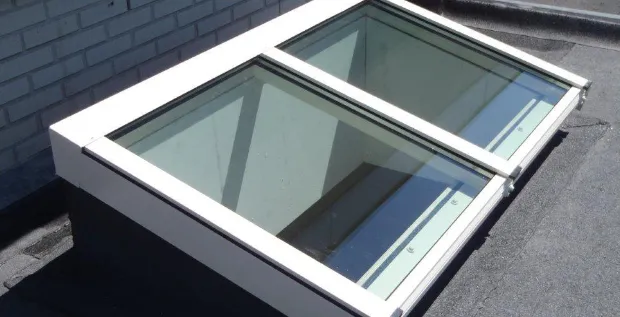

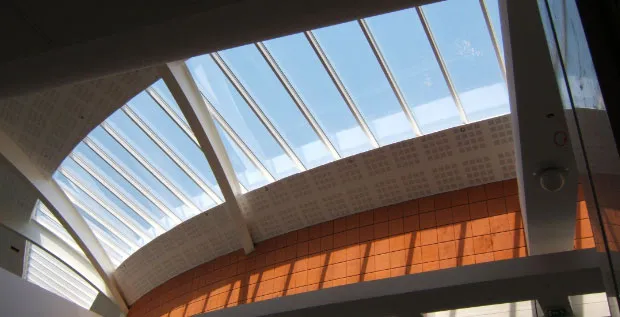

Monopitch rooflight
A monopitch rooflight has one sloping side, with the slope angle of the profiles and glazing being tailored to the project specifications.
Monopitch rooflights can be manufactured from high-quality aluminium with glass or plastic glazing, fully tailor-made. Arcolux monopitch rooflights create a feeling of space and are constructed from a proprietary profile system. This system results in a solid construction that enables large self-supporting spans to be achieved. In combination with the chosen materials, this ensures a strong daylight solution.
Using insulating glass in combination with a thermally broken construction can achieve a very high insulation value. The monopitch rooflight type can therefore fully meet today’s requirements for sustainable construction.
The profiles are manufactured from high-quality plain, powder-coated or anodised aluminium. The rooflight can be placed on steel, wooden, plastic or concrete upstands. Our coverings are fully self-supporting but can also be provided with additional structural elements.
Arcolux monopitch rooflights can be glazed with glass or a high-quality polycarbonate. The plastic used is extremely impact-resistant (according to NEN 14963:2006) and hail-resistant and offers good insulation values. In combination with thermally broken profiles, optimal insulation values can be achieved with this.
Glazing options for monopitch rooflights:
- Single-pane laminated glass
- Safety glass
- Fall-proof glass
- Toughened glass
- Occasionally walkable glass
- Walkable glass
- Self-cleaning glass
- Sun-resistant glass
- Insulating glass
- Glass with integrated solar cells (BIPV: Building Integrated PhotoVoltaics)
- HR++ glass
- HR+++ glass
- polycarbonate (PC), solid (single, double or multi-walled)
- polycarbonate (PC), hollow core panel
- acrylic (PMMA), solid (single, double or multi-walled)
- lightproof
- sandwich panel
Integrated protection from the sun
The glazing can be given an integrated sun and heat-resistant coating. The glazing material used by Arcolux is protected against UV as standard.
Glazing with printing
The plastic panels can be given full-colour foil prints to create a unique rooflight (e.g. with your logo).
Insulation:
Arcolux supplies systems with optimal insulation values according to EN ISO 6946 for both the panels (Ug) and the complete system (Uw), for which the latest insulation technologies are used.

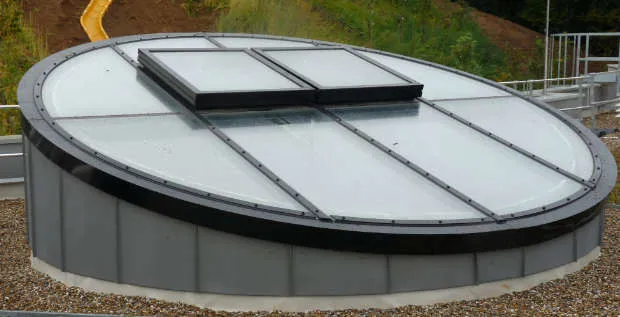

All popular ventilation systems can be used in Arcolux rooflights. From simple, manually operated ventilation vents and grilles to centrally controlled electrical or pneumatic systems for the automatic venting of smoke and heat. See below for an overview of the possibilities. In addition, a ventilation system can also be mounted in a bulkhead.
|
Detail drawings of ventilation |
|
|
Single thermal vent
|
|
|
Halve thermal vent
|
 |
|
Ridge thermal vent
|
 |
|
Sliding vent |
|
|
SHEVS |
|
|
Mechanical ventilation |
 |
For stringent requirements in areas such as impact resistance, insulation or fire safety, you’ve come to the right place at Arcolux. Our aluminium constructions with glass or plastic are tested according to the following Dutch and European standards:
Glass:
NEN 2778: methods for determining the watertightness, rainproofing or structural constructions.
Plastic:
- Air permeability (NEN 1026:2000)
- Watertightness (NEN 14963:2006)
- Upward load (NEN 14963:2006)
- Downward load (NEN 14963:2006)
- Soft body impact 350/800/1200 Joules (NEN 4963:2006 and NF.P.08.301 and NF.P.08.302 and NF.P.08.301 and NF.P.08.302)
- Hard body impact (NEN 14963:2006)
- Fire spread resistance (EN 13501-5)
Glass & plastic:
The designs and constructions are realised on the basis of:
Eurocode 0 Basis
- NEN-EN 1990: Basis of structural design
Eurocode 1 Actions on structures
- NEN-EN 1991-1-3: Snow loads
- NEN-EN 1991-1-4: Wind loads
Eurocode 9 Design of aluminium structures
- NEN-EN 1991-1-1: General rules
Below, you will find the specifications texts for the general definition of an Arcolux monopitch rooflight. The projects of Arcolux are fully tailor-made. If required, we can compile the relevant specification text for you. Please contact us for more information.
Specification text:
Design: Arcolux monopitch rooflight
Slope angle: from 10 degrees, variable
Clear opening, free span (mm): 800 – 4.000 (larger on request)
Clear opening, length (mm): onbeperkt
Upstand width (mm) (minimum 50mm.):
Endpieces: insulated bulkhead / bulkhead with glazing / wall connection / open side / connection to structural upstand.
Glazing:
• Single-pane laminated glass, safety glass
• Fall-proof glass
• Toughened glass
• Occasionally walkable glass
• Walkable glass
• Self-cleaning glass
• Sun-resistant glass
• Insulating glass
• Glass with integrated solar cells (BIPV: Building Integrated PhotoVoltaics)
• HR++ glass
• HR+++ glass
Plastic glazing: Polycarbonate (PC), solid (single, double or multi-walled),
polycarbonate (PC), hollow core panel, acrylic (PMMA), solid (single, double or multi-walled), lightproof.
Glazing thickness (mm): Polycarbonate, hollow core panel: 10 / 16 / 20 / 25 mm.
Polycarbonate or solid acrylic: 2 / 3 / 4 / 5 / 6 / 8 / 10 / 12 mm.
Glazing design: opaque / clear / heat-resistant / coloured / with full-colour foil print.
Glazing profile: dry clamped with EPDM seals.
Profile: standard / thermally broken.
Aluminium type and grade (EN 573-3) (EN AW): 6060 T66
Surface treatment: plain /powder-coated (Qualicoat) / plain anodised / coloured anodised (Qualanod).
Colour (RAL): ....
Ventilation: (none) / half thermal vent / thermal vent / sliding vent / SHEVS / grille.
Ventilation operation: manual / electric / pneumatic / wind and rain controller (WRC).
Fall safety: fall-safe construction and glazing 350 / 600 / 800 / 1200 Joules (NEN 14963:2006 and NF.P.08.301 and NF.P.08.302 and NF.P.08.301 and NF.P.08.302).
Security features: individual anchor points (DIN EN-795:2012).
Technical documentation
Monopitch rooflight documentation
Detail drawings
2. Upstand detail, upstand connection
Installation with Partners & Arcolux itself
Arcolux has an extensive partner network in Europe and its own offices in the Netherlands and France. You can have the installation carried out by Arcolux or one of our partners or you can do it yourself.
